Mercedes Benz C240 2001 Fuse Box/Block Circuit Breaker Diagram
| Function | Fuse No. |
|---|---|
| ABS | 56,59,60,62 |
| Airbag Warning Lamps | 41,42,45,49 |
| Airbag/Side Airbag Control Unit | 45,49 |
| Air-Conditioner (SE) | 41,51 |
| Anti-Theft Alarm (SE) | 8,9,4,1 |
| Automatic Heater System | 41 |
| Auxiliary Heater (SE) | 35 |
| Blower Motor (Heater/AC) | 30,41 |
| Brake Lights | 62 |
| Central Locking | 21,22,32,33,57 |
| Central Locking-Interior Switch | 41 |
| Cigar Lighter | 47 |
| COMAND (SE) | 64 |
| Convenience Locking | 8,9,21,22,32,33 |
| Courtesy Lights (SE) | 21.22 |
| Diagnostic Socket | 62 |
| Dipped Beam | 62,63 |
| Dome Lights | 3,9 |
| E-Call/ TeleAid (SE) | 40,44 |
| Electronic Stability Program | 55,56,57,59,60,63 |
| Engine Electronics | 48,53,54 |
| Engine Fan | 51 |
| Engine Residual Heat Syst.(SE) | 30,41,51 |
| Fanfare | 43 |
| Fog Lamps | Electronic |
| Fog Tail Light | Electronic |
| Fuel Filler Flap Unlocking | 15 |
| Fuel Pump | 4 |
| Garage Door Opener (SE) | 9 |
| Glove Compartment Light | 47 |
| Hazard Warning Flasher | 41 |
| Headlamp Flasher | Electronnic |
| Headlamp Range Adjust (SE) | 51 |
| Headlamp Washer System (SE) | 63 |
| Heated Rear Window | 10,41 |
| High Beam, High Beam Tell-Tale | Electronic |
| Instrument Cluster | 42 |
| Language Control System (SE) | 13,16 |
| License Plate Illumination | Electronic |
| Locking Check-Back | Electronic |
| Low Beam | 62,63 |
| Main Beam Indic Lamp | Electronic |
| Make-Up Mirror(SE) | 9 |
| Mirror Adjustment | 21,22,63 |
| Mirror Automatic Dimming(SE) | 9,21 |
| Mirror Fold-in Feature(SE) | 21,22,63 |
| Mirror Heater | 21,22 |
| Multi-Contour Backrest(SA) | 13,19 |
| Multi-Function Steering Wheel | Electronic |
| Navigation System (SE) | 64 |
| Number Plate Light | Electronic |
| Parking Lamps/Tail Lamps | Electronic |
| Parktronic System (SE) | 13,41 |
| Power Socket, Boot (SE) | 12 |
| Power Window, Front | 21,22 |
| Power Window, Rear | 21,32,33 |
| Radio | 64 |
| Rain Sensor(SE) | 9 |
| Rear Fog Light | Electronic |
| Rear Head Release | 41 |
| Rear Windscreen Wash System | 14,41 |
| Remote Boot/Trunk Release | 8,21 |
| Reversing Lamps | Electronic |
| Seat Adjustment, Driver | 2,21,27,29 sp-Coupe |
| Seat Adjustment, Passenger | 1,22,38,34 sp-Coupe |
| Seat Heater(SE) | 25,41 |
| Sound System (SE) | 26 |
| Start Enable | 31,52,57 |
| Steering Lock | 31 |
| Steering Wheel Adjustment (SE) | 2,21,27,29sp-coupe |
| Sun Blind for Rear Window (SE) | 20,41 |
| Switch Illumination | 9,21,22,32,33,41,50 |
| TeleAid (SE)/E-Call | 40,44 |
| Telephone System (SE) | 13,16,40,44 |
| Television (SE) | 3 |
| Tilting/Sliding Roof(SE) | 9 |
| Trailer Lighhts (SE) | 17 |
| Trailer, Power Supply (SE) | 18 |
| Transmission Electronics (SE) | 55,58,61 |
| Turn Signal, t.s Indicator Lamp | Electronic |
| Water Pump (AMG-Kompressor) | 5 |
| Windscreen Washer Pump | Electronic |
| Windscreen Wipers | 46 |

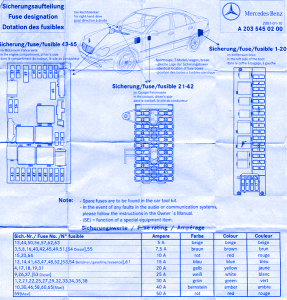

Mercedes Benz C240 2001 Fuse Panel/Board – Fuse Symbol Map
