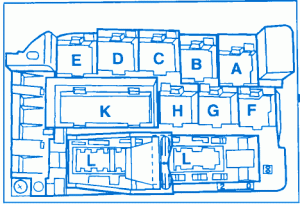

Mercedes-Benz C 280 W 202 1993 Engine Fuse Box/Block Circuit Breaker Diagram
| Relay Code | Abbreviation | Designation | ||
|---|---|---|---|---|
| A | K35 | O2S 2 (After TWC) Heater Relay Module | ||
| B | K20 | ASR Charging Pump Relay Module (Up To 11/94) | ||
| K17 | AIR Relay Module | |||
| C+D | K9 | Auxiliary Fan Relay Module (Stage 1[up to 11/94]and 2) | ||
| K9K1 | Auxiliary Fan Relay (Stage 1)(Up To 11/94) | |||
| K9K2 | Auxiliary Fan Relay (Stage 2)(Up To 11/94) | |||
| C | K9/1 | Auxiliary Fan Relay Module (Stage 1)(11/94-08/95)- Reserve (as of 09/95) | ||
| D | K10 | Auxiliary Fan Relay Module (Stage 2)(11/94-08/95)- Reserve (as of 09/95) | ||
| E | K2 | HCS Relay Module | ||
| F | K39 | Horn Relay Module | ||
| G | K19/1 | Separation Relay Module (Terminal 56/56b, Daytime Running Lamps)(Canada) | ||
| H | K20/1 | High-Pressure/Return Pump Relay (as of 06/94) | ||
| K | N10 | Combination Relay (Turn/Hazard Signal, Heater Rear Window, Wiper Motor) | ||
| L | N7 | Exterior Lamp Failure Monitoring Module | ||
Mercedes-Benz C 280 W 202 1993 Engine Fuse Panel/Board – Fuse Symbol Map
