Mazda5 GS 6 2010 Passenger Side Fuse Box/Block Circuit Breaker Diagram
| Description | Fuse Rating | Protected Components | |||||
|---|---|---|---|---|---|---|---|
| 1 | Fan | 30A | Cooling Fan | ||||
| 2 | Fan | 30A | Cooling Fan | ||||
| 3 | P.WIND*1 | 40A | Power Windows | ||||
| R.BLOWER*2 | 30A | Rear Blower Motor | |||||
| 4 | IG KEY1 INJ*1 | 30A | For Protection of Various Circuits | ||||
| IG KEY2*2 | 20A | - | |||||
| 5 | ABS-V | 20A | ABS | ||||
| 6 | ABS-P | 30A | ABS | ||||
| 7 | IG KEY2*1 | 20A | - | ||||
| IG KEY1*2 | 40A | For Protection of Various Circuits | |||||
| 8 | HEATER DEICER TCM | 20A | - | ||||
| 9 | BLOWER*1 | 40A | Blower Motor | ||||
| F.BLOWER*2 | 20A | Front Blower Motor | |||||
| 10 | GLOW IG KEY1*1 | 40A | For Protection of Various Circuits | ||||
| F.BLOWER*2 | 20A | Front Blower Motor | |||||
| 11 | BTN | 60A | For Protection of Various Circuits | ||||
| 12 | IG KEY2 | 40A | - | ||||
| 13 | CLOSER P.SLIDE LH | 20A | Easy Closer* | ||||
| 14 | CLOSER P.SLIDE RH | 20A | Easy Closer* | ||||
| 15 | EHPAS | 80A | Electro-Hydraulic Power Assist Steering | ||||
| 16 | FOG | 15A | Fog Lights* | ||||
| 17 | D.LOCK | 20A | Power Door Lock | ||||
| 18 | P.WIND H/CLEAN | 20A | Power Windows | ||||
| 19 | ETC | 10A | Accelerator Position Sensor | ||||
| 20 | DEFOG | 25A | Rear Window Defroster | ||||
| 21 | ENG+B | 10A | PCM | ||||
| 22 | STOP | 10A | Brake Lights | ||||
| 23 | FUEL | 20A | Fuel Pump | ||||
| 24 | HAZARD | 10A | Turn Signal, Hazard Warning Flasher | ||||
| 25 | ROOM | 15A | Overhead Lights, Map Lights, Luggage Compartment Light, For Protection of Various Circuits | ||||
| 26 | - | - | - | ||||
| 27 | MAG | 10A | Magnet Clutch | ||||
| 28 | GLOW SIG*1 | 7.5A | - | ||||
| -*2 | - | - | |||||
| 29 | HEAD HR | 10A | Headlight High Beam (RH) | ||||
| 30 | HEAD HL | 10A | Headlight High Beam (LH) | ||||
| 31 | HORN | 15A | Horn | ||||
| 32 | SUN ROOF | 20A | Moonroof* | ||||
| 33 | MIRROR BURGLAR*1 | 7.5A | Theft-Deterrent System* | ||||
| -2* | - | - | |||||
| 34 | HEAD LR | 15A | Headlight Low Beam (RH), Manual Headlight Leveling* | ||||
| 35 | HEAD LL | 15A | Headlight Low Beam (LH) | ||||
| 36 | ENG BAR2 | 15A | O2 Heater | ||||
| 37 | ENG BAR | 15A | Air Flow Sensor, Engine Control System | ||||
| 38 | INJ ENG BA | 20A | Injector | ||||
| 39 | ILLUMI | 10A | Illumination | ||||
| 40 | TAIL | 10A | Taillights, Parking Lights, Licensa Plate lights, For Protection of Various Circuits | ||||

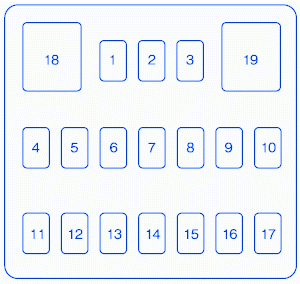

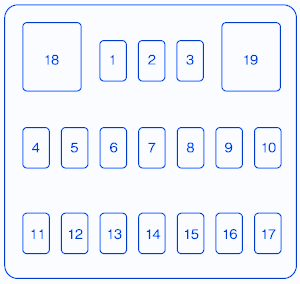

Mazda5 GS 6 2010 Passenger Side Fuse Panel/Board – Fuse Symbol Map
