Mazda5 2009 Passenger Side Fuse Box/Block Circuit Breaker Diagram
| Description | Fuse Rating | Protected Components | |
|---|---|---|---|
| 1 | Fan | 30A | Cooling Fan |
| 2 | Fan | 30A | Cooling Fan |
| 3 | P.WIND*1 | 40A | Power Windows |
| R.BLOWER*2 | 30A | Rear Blower Motor | |
| 4 | IG KEY1 INJ*1 | 30A | For Protection of Various Circuits |
| IG KEY2*2 | 20A | - | |
| 5 | ABS-V | 20A | ABS |
| 6 | ABS-P | 30A | ABS |
| 7 | IG KEY2*1 | 20A | - |
| IG KEY1*2 | 40A | For Protection of Various Circuits | |
| 8 | HEATER DEICER TCM | 20A | - |
| 9 | BLOWER*1 | 40A | Blower Motor |
| F.BLOWER*2 | 20A | Front Blower Motor | |
| 10 | GLOW IG KEY1*1 | 40A | For Protection of Various Circuits |
| F.BLOWER*2 | 20A | Front Blower Motor | |
| 11 | BTN | 60A | For Protection of Various Circuits |
| 12 | IG KEY2 | 40A | - |
| 13 | CLOSER P.SLIDE LH | 20A | Easy Closer* |
| 14 | CLOSER P.SLIDE RH | 20A | Easy Closer* |
| 15 | EHPAS | 80A | Electro-Hydraulic Power Assist Steering |
| 16 | FOG | 15A | Fog Lights* |
| 17 | D.LOCK | 20A | Power Door Lock |
| 18 | P.WIND H/CLEAN | 20A | Power Windows |
| 19 | ETC | 10A | Accelerator Position Sensor |
| 20 | DEFOG | 25A | Rear Window Defroster |
| 21 | ENG+B | 10A | PCM |
| 22 | STOP | 10A | Brake Lights |
| 23 | FUEL | 20A | Fuel Pump |
| 24 | HAZARD | 10A | Turn Signal, Hazard Warning Flasher |
| 25 | ROOM | 15A | Overhead Lights, Map Lights, Luggage Compartment Light, For Protection of Various Circuits |
| 26 | - | - | - |
| 27 | MAG | 10A | Magnet Clutch |
| 28 | GLOW SIG*1 | 7.5A | - |
| -*2 | - | - | |
| 29 | HEAD HR | 10A | Headlight High Beam (RH) |
| 30 | HEAD HL | 10A | Headlight High Beam (LH) |
| 31 | HORN | 15A | Horn |
| 32 | SUN ROOF | 20A | Moonroof* |
| 33 | MIRROR BURGLAR*1 | 7.5A | Theft-Deterrent System* |
| -2* | - | - | |
| 34 | HEAD LR | 15A | Headlight Low Beam (RH), Manual Headlight Leveling* |
| 35 | HEAD LL | 15A | Headlight Low Beam (LH) |
| 36 | ENG BAR2 | 15A | O2 Heater |
| 37 | ENG BAR | 15A | Air Flow Sensor, Engine Control System |
| 38 | INJ ENG BA | 20A | Injector |
| 39 | ILLUMI | 10A | Illumination |
| 40 | TAIL | 10A | Taillights, Parking Lights, Licensa Plate lights, For Protection of Various Circuits |

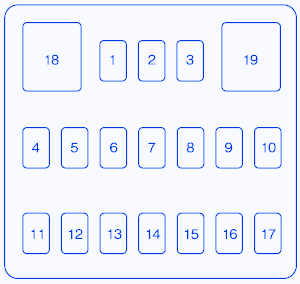

Mazda5 2009 Passenger Side Fuse Panel/Board – Fuse Symbol Map
