Mazda RX-8 Sport 2010 Engine Compartment Fuse Box/Block Circuit Breaker Diagram
| No. | Fuse Code | Rating | Protected Circuit/Components |
|---|---|---|---|
| 1 | MAIN | 120A | For Protected of all Circuits |
| 2 | HEATER | 40A | Heater |
| 3 | AIR PUMP | 60A | Air Pump |
| 4 | BTN | 30A | Power Windows, Power Door Locks, Illuminated Entry System, Moonroof |
| 5 | DEFOG | 50A | Rear Window Defroster |
| 6 | FAN 1 | 30A | Electric Fan 1 |
| 7 | ABS/DSC | 40A | ABS, DSC |
| 8 | ACC | 30A | Lighter, Power Control Mirror, Accessory Socket, Audio System |
| 9 | FAN 2 | 30A | Electric Fan 2 |
| 10 | HEAD | 15A | Headlight High Beams, Headlight Cleaner |
| 11 | HEAD LOW R | 15A | Headlight Low Beam (RH) |
| 12 | HEAD LOW L | 15A | Headlight Low Beam (LH) |
| 13 | DRL | 15A | DRL (Headlight High Beams) |
| 14 | DSC | 30A | DSC |
| 15 | SEAT WARM | 20A | Seat Warmer |
| 16 | H/CLEAN | 20A | Headlight Cleaner |
| 17 | R.FOG | ||
| 18 | FOG | 15A | Fog Light |
| 19 | A/C | 10A | Air Conditioner |
| 20 | IG | 40A | For Protection of Various Circuits |
| 21 | P.WIND 1 | 30A | Power Window |
| 22 | IG KEY | 15A | For Protection of Various Circuits |
| 23 | STOP | 10A | Brake Lights |
| 24 | FUEL PUMP | 20A | Fuel Pump |
| 25 | HORN | 15A | Horn |
| 26 | HAZARD | 15A | Hazard Warning Flashers, Turn Signals |
| 27 | ETV | 15A | Electric Throttle Valve |
| 28 | ST | 10A | Starter |
| 29 | WIPER | 20A | Windshield Wiper and Washer |
| 30 | TCM | 15A | TCM |
| 31 | ENGINE | 15A | Engine Control System, Supplemental Restraint System, ABS, Power Steering |
| 32 | TAIL | 10A | Taillights, License Plate Light, Parking Lights, Front Side-marker Lights, Rear side-marker Lights |
| 33 | ILLUMI | 7.5A | Illuminated Entry System |
| 34 | EGI COMP 1 | 15A | Engine Control System |
| 35 | EGI COMP 2 | 10A | Engine Control System |
| 36 | EGI INJ | 15A | Fuel Injector |
| 37 | P.WIND 2 | 20A | Power Window |
| 38 | EPS | 60A | Power Steering |

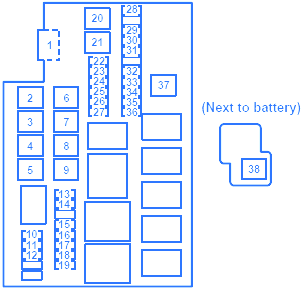

Mazda RX-8 Sport 2010 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
