Mazda MPV 2009 Under Dash Fuse Box/Block Circuit Breaker Diagram
| NO. | CICUIT NAME | AMPS |
|---|---|---|
| 1 | SUN ROOF | 15A |
| 2 | R. WIP | 10A |
| 3 | SEAT WAMER | 15A |
| 4 | MIRR DEF | 10A |
| 5 | A/C | 10A |
| 6 | DRL | 10A |
| 7 | - | - |
| 8 | H/CLEAN | 20A |
| 9 | - | - |
| 10 | HAZARD | 10A |
| 11 | ROOM | 10A |
| 12 | AUX POWER | 15A |
| 13 | CLOSER LH | 15A |
| 14 | AUDIO | 10A |
| 15 | DOOR LOCK | 30A |
| 16 | - | - |
| 17 | ENGINE | 10A |
| 18 | METER | 10A |
| 19 | STOP | 15A |
| 20 | CLOSER RH | 15A |
| 21 | ACC. DELAY | 30A |
| 22 | - | - |
| 23 | ST. SIGN | 10A |
| 24 | CIGAR | 15A |
| 25 | WIPER | 20A |
| 26 | P. WIND | 30A |

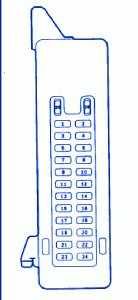

Mazda MPV 2009 Under Dash Fuse Panel/Board – Fuse Symbol Map
