Mazda Familia 2004 Fuse Box/Block Circuit Breaker Diagram
| NO. | CIRCUIT NAME | FUSE |
|---|---|---|
| 1 | - | - |
| 2 | - | - |
| 3 | CIGAR RADIO | 15A |
| 4 | A/C S/ROOF | 15A |
| 5 | - | - |
| 6 | - | - |
| 7 | R. DEFOG | 20A |
| 8 | ROOM | 10A |
| 9 | - | - |
| 10 | TURN | 10A |
| 11 | MAG+W/DEF | 10A |
| 12 | TAIL | 10A |
| 13 | WIPER | 20A |
| 14 | ENGINE | 15A |
| 15 | METER | 15A |
| 16 | - | - |
| 17 | P/WIND | 30A |

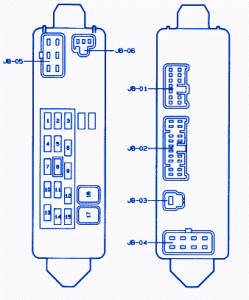

Mazda Familia 2004 Fuse Panel/Board – Fuse Symbol Map
