Mazda CX9 2008 Main Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1 | Main Fuse |
| 2 | Fuel Pump Relay |
| 3 | A/C Relay |
| 4 | Main Relay |
| 5 | TNS Relay |
| 6 | Horn Relay |
| 7 | Headlight Relay |
| 8 | Cooling Fan Relay |
| 9 | Condenser Fan Relay |

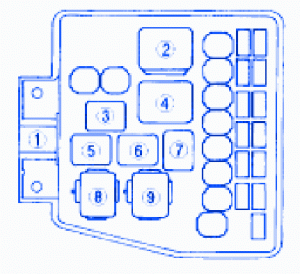

Mazda CX9 2008 Main Fuse Panel/Board – Fuse Symbol Map
