Mazda BT50 2009 Front Fuse Box/Block Circuit Breaker Diagram
| Fuse | Amps | Smart Junction Box Description |
|---|---|---|
| 1 | 15A | Trailer Tow Lamps |
| 2 | 5A | Not Used |
| 3 | 15A | Front and Rear Park Lamps |
| 4 | 10A | Ignition Switch |
| 5 | 2A | Powertrain Control Module (PCM), Fuel Pump Relay, Main fan Relay, High/Low Speed Fan Relay 2, Passive Anti-Theft System (PATS) Control Module |
| 6 | 15A | High Mounted Stop Lamp, Stop Lamps, Powertrain Control Module (PCM), Antilock Brake System (ABS), Speed Control, Brake Pedal Position Switch |
| 7 | 10A | Instrument Cluster, Diagnostic Connector, Power Mirror, Radio |
| 8 | - | Not Used |
| 9 | 30A | Power Door Locks, Power Seats |
| 10 | 15A | Heated Mirrors |
| 11 | 15A | Sunroof |
| 12 | 5A | Radio |
| 13 | - | Not Used |
| 14 | - | Not Used |
| 15 | 30A | Power Windows |
| 16 | 15A | Not Used |
| 17 | 15A | Low Beam |
| 18 | 10A | 4×4 |
| 19 | - | Not Used |
| 20 | 15A | Horn |
| 21 | 10A | Rear Wiper Motor, Rear Wiper Washer |
| 22 | 10A | Instrument Cluster |
| 23 | 5A | Not Used |
| 24 | 20A | Cigar Lighter |
| 25 | 20A | Front Wiper Motor, Front Wiper Washer |
| 26 | 5A | Function Selector Switch Assembly |
| 27 | 5A | Canister Vent, Deactivator Switch |
| 28 | 10A | Instrument Cluster |
| 29 | 10A | Not Used |
| 30 | - | Not Used |
| 31 | - | Not Used |
| 32 | 10A | Brake/Transmission Shift-Lock |
| 33 | 15A | Airbag Module, Passenger Airbag Deactivation (PAD) Indicator Occupant Cassfication Sensor (OCS) |
| 34 | 5A | ABS Control Module, ABS Lest Connector, Speed Control |
| 35 | 5A | Heated Seat Module, 4×4 |
| K1 | - | Run/accessory Relay |
| K2 | - | Run/Start Relay |
| K3 | - | Park Lamp Relay |
| K4 | - | Rear Defrost Relay |
| K5 | - | Accessory Delay Relay |

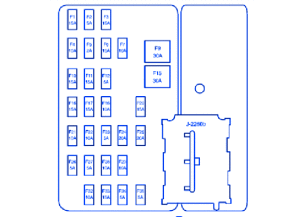

Mazda BT50 2009 Front Fuse Panel/Board – Fuse Symbol Map
