Lincoln Zephyr 2002 Primary Fuse Box/Block Circuit Breaker Diagram
| Mini Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 25A | Auxiliary Power Socket |
| 2 | 30A | PCM Power Relay |
| 3 | 30A | Main Light Switch, Headlamp Relay, Multifunction Switch |
| 4 | 25A | Corsole Auxiliary Power Socket |
| 5 | 20A | Trailer Tow Runnng Lamp Relay, Trailer Tow Reversing Lamp Relay |
| 6 | 15A | Main Light Switch, Park Lamp Relay |
| 7 | 20A | Horn Relay |
| 8 | 30A | Lock Relays |
| 9 | 15A | Daytime Running Lamps(DRL) Module, Fog Lamp Relay |
| 10 | 20A | Fuel Pump Relay |
| 11 | 20A | Charging System |
| 12 | 10A | Rear Wipers Up and Down |
| 13 | - | Not Used |
| 14 | - | Not Used |
| 15 | 10A | Right Running Board Lamp, Left Running Board Lamp, Central Junction Box |
| 16 | - | Not Used |
| 17 | 10A | Radio, Cental Junction Box, Power Window Switch, RPO Relay Block #2 |
| 18 | 15A | Fuel Injectors, PCM |
| 19 | 10A | Trailer/Camper Adapter |
| 20 | 10A | Trailer/Camper Adapter |
| 21 | - | Not Used |
| 22 | - | Not Used |
| 23 | 15A | Heated Oxygen Sensors |
| 24 | 15A | Transmission |
| Maxi Fuses | Amps | Circuits Protected |
|---|---|---|
| 101 | 30A | Trailer Tow Battery Charge Relay |
| 102 | 50A | (4WABS) Module |
| 103 | 50A | Central Junction Box |
| 104 | 30A | Tranfer Case Shift Relays, Torque on Domand (TOD) Relay |
| 105 | 40A | Blower Relay |
| 106 | - | NOt Used |
| 107 | 30A | Passenger Power Seat Control Switch |
| 108 | 30A | Trailer Electronic Brake Control |
| 109 | 50A | Air Suspension Compressor Relay |
| 110 | 30A | Ven Window/Roof Opening Panel Relay, Heated Seat Modules |
| 111 | 50A | Ignition Switch |
| 112 | 30A | Power Seat Control Switch |
| 113 | 50A | Ignition Switch |
| 114 | 30A | Auxiliary A/C Relay |
| 115 | - | Not Used |
| 116 | 40A | Heated Grid Relay |
| 117 | - | Not Used |
| 118 | - | Not Used |
| 601 C.B | 30A | ACC Delay Relay |
| 602 C.B | - | Not Used |

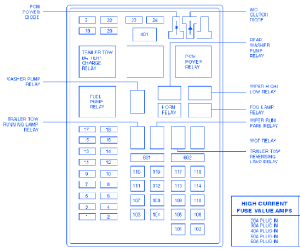

Lincoln Zephyr 2002 Primary Fuse Panel/Board – Fuse Symbol Map
