Lincoln Mark 1995 Engine Fuse Box/Block Circuit Breaker Diagram
| MAXI-FUSE | AMPS | CIRCUITS PROTECTED |
|---|---|---|
| IGN. COIL | 20A | Fuel Pump Relay, Ignition Coils, Radio Noise, Capacitors, Variable Load Control Module (VLCM) |
| PR SN/CELL PH | 20A | Radio Amplifier, Cellular Phone |
| AIR COMP | 50A | Air Compressor Relay |
| F/PNL | 50A | See Instrument Panel Fuses 6 and 11 |
| IGN SW | 40A | Ignition Switch, Delayed Accessory Module |
| F/PNL | 50A | See instrument Panel Fuses 4,8,16 and Circuit Breaker 12 |
| COOL FAN | 40A | Variable Load Control Module (VLCM) |
| REAR DEF | 40A | Rear Window Defrost Control |
| HEADLAMPS | 40A | Main Light Switch |
| ABS MOTOR | 40A | Anti-Lock Pump Motor Relay |
| ABS MODULE | 30A | Anti-Lock Brake Relay, Anti-Lock Brake Control Module |
| IGN SW | 50A | Ignition Switch |
| FUEL PUMP | 20A | High Speed Fuel Pump Relay, Variable Load Control Module (VLCM) |
| E-EEC/VLCM | 30A | PCM power Relay, Engine Compartent Fuse Box(E-EEC Keep Alive Power), Powertrain Control Module (PCM), Data Link Connector |

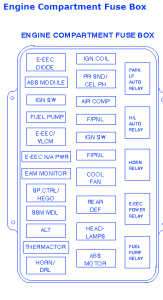

Lincoln Mark 1995 Engine Fuse Panel/Board – Fuse Symbol Map
