Lincoln L3K 1995 Dashboard Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
|---|---|---|
| 1 | 10A | Starter Relay Coil |
| 2 | 10A | Restraint Control Module (RCM), Occupant Classification Sensor (OCS), Passenger Air Bag Deactivation Indicator (PADI) |
| 3 | 10A | Audio, Navigation Control Head |
| 4 | 10A | Back-up Lamps |
| 5 | 10A | Audio |
| 6 | 10A | Passive Anti-Theft System (PATS), Powertraint Control Module (PCM) Relay Coil, Ignition Coil Relay Coil, Fuel Relay Coil |
| 7 | 10A | Wiper Module |
| 8 | 10A | Power Decklid Module (PDM), Lighting Control Module (LCM), Overdrive Cancel Switch, Cluster, Rear Defroster Relay Coil |
| 9 | 7.5A | Mirror Switch Illumination, Door Lock Switch Illumination, Rear Audio Control, Heated Seat, Switch Illumination, LCM, Electrochromatic Mirror, OverHead Console |
| 10 | 15A | Hazard |
| 11 | 10A | Rear Air Suspension Module (RASM) |
| 12 | 10A | LCM (Illumination) |
| 13 | 10A | Cluster, Extended Rear Park Aide Module |
| 14 | 15A | Adjustable Pedals |
| 15 | 10A | Dual Automatic Temperature Control (DATC) Module |
| 16 | 20A | Cigar lighter, OBD II |
| 17 | 10A | Anti-Lock Brake System (ABS) Module, Positive Crankcase Ventilation (PCV) |
| 10A | A/C Cycle Switch, Heated Seat Modules | |
| 18 | 15A | LCM (Interior Lighting) |
| 19 | 10A | Driver´s Door Module (DDM) Switches, PDM, Power Mirrors, DSM |
| 20 | 10A | LCM (Right-Hand Low Beam) |
| 21 | 10A | PATS LED, Cluster, Analog Clock, Overhead Console |
| 22 | 10A | LCM (Left-Hand Low Beam) |
| 23 | 10A | LCM |
| 24 | 15A | LCM (High Beams), Multi-Function switch (Flash-to-Pass) |
| 25 | 10A | Brake Transmission Shift Interlock (BTSI), Stop Switch Signal Feed, Speed Control deactivation switch |
| 10A | DATC Module, Cluster | |
| 26 | 15A | LCM (Park Lamps, Cornering Lamps) |
| 27 | 10A | DATC Module |
| 28 | 10A | Center High-Mounted Stop Lamp (CHMSL) |
| 7.5A | Brake Signal, LCM (BTSI), ABS | |
| 29 | 15A | Turn Signals |
| 30 | 15A | Stop Lamps |
| 31 | 10A | A/C Cycle Switch, Heated seat Module |
| 31 | 5A | LCM (Key in) |
| 32 | 10A | Mirror Heaters |
| 7.5A | Delay Accessory (Navigation/Audio/Moonroof) | |
| 33 | 15A | Audio, Navigation |
| K101 | - | Rear Defroster relay |

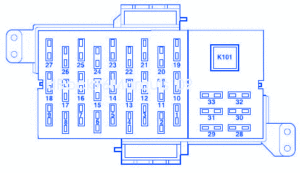

Lincoln L3K 1995 Dashboard Fuse Panel/Board – Fuse Symbol Map
