Lincoln Continental 1996 Rear Chassis Electrical Circuit Wiring Diagram

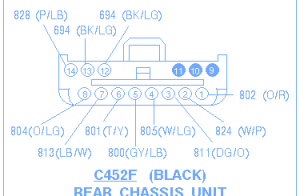

| PIN | CIRCUIT | CIRCUIT FUNCTIO |
|---|---|---|
| 1 | 802 (O/R) | Right Rear Speaker Signal (-) |
| 2 | 824 (W/P) | Right Rear Speaker Signal (+) |
| 3 | 811 (DG/O) | Right Front Speaker Signal (-) |
| 4 | 805 (W/LG) | Right Front Speaker Signal (+) |
| 5 | 800 (GY/LB) | Left Rear Speaker Signal (-) |
| 6 | 801 (T/Y) | Left Rear Speaker Signal (+) |
| 7 | 813 (LB/W) | Left Front Speaker Signal (-) |
| 8 | 804 (O/LG) | Left Front Speaker Signal (+) |
| 9 | - | Not Used |
| 10 | - | Not Used |
| 11 | - | Not Used |
| 12 | 694 (BK/LG) | Ground |
| 13 | 694 (BK/LG) | Ground |
| 14 | 828 (P/LB) | B+ |
