Lincoln Continental 1996 Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| 1. | In-Car Temperature Sensor |
| 2. | EATC Sun Load Sensor |
| 3. | Warning Light Module |
| 4. | LCD Dimming Relay |
| 5. | High/Low Beam Relay |
| 6. | Electronic Automatic Temperature Control (EATC) Module |
| 7. | Shift Lock Actuator |
| 8. | Light Sensor/Amplifier |
| 9. | Air Bag Diagnostic Module & Pulse Width Dimming Module |
| 10. | Radio Suppression Choke |
| 11. | Fuse Block |
| 12. | Electronic Flasher (Turn Signal/Hazard) |
| 13. | Light Out Warning Module |
| 14. | Parking Brake Switch |
| 15. | Steering Rate sensor |
| 16. | ABS Pedal Travel Switch |
| 17. | Brake ON/OFF (BOO) Switch |
| 18. | Autolight Relay |
| 19. | Variable Assist Power Steering (VAPS) Module |
| 20. | Windshield Wiper Control Module |
| 21. | Horn Relay |
| 22. | Warning Chime Module |
| 23. | Window Safety Relay |
| 24. | Temperature Blend Door Actuator |
| 25. | A/C-Heater Blower Motor Speed Controller |
| 26. | A/C-Heater Blower Motor |
| 27. | Remote Keyless Program Connector |
| 28. | Speed Control Amplifier |

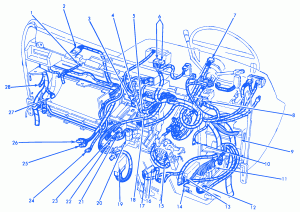

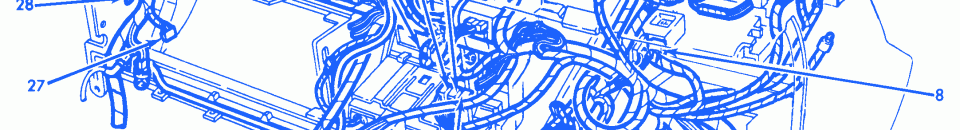

Lincoln Continental 1996 Electrical Circuit Symbol Map
