Lincoln Continantal 1995 Hazzard Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | AMPS | COLOR | CIRCUIT PROTECTED |
|---|---|---|---|
| 1 | 15A | LB | Stop Lamps, Hazard Warning Lamps, Speed Control |
| 2 | 25A | Windshield Wiper Governer, Windshield Wiper Switch and Motor, Windshield Washer Motor, Windshield Fluid Level Switch | |
| 3 | - | - | Not Used |
| 4 | 15A | LB | Chime, Front Parking and Side Marker Lamps, Fuse Cavitiesn13 and 15, and Illumination of the following Items Cluster, Headlamp Switch, Temperature Controls, Message Center Switch, Heater Back Window Switch, Front and Rear Ash Receptacles |
| 5 | 15A | LB | Heated Back Window Switch, Electronic Flasher, Steering Rate Sensor, Roof Console, Air Suspension, Day/Night Mirror, Back-Up Lamps, A/C Control Head, Cluster Control Buttons, Variable Assist Power Steering Module, Electronic Door lock Control Processor or Illuminated Entry module, Turn Signal Lamps, Cluster Illumination, Shift Interlock Solenoid |
| 6 | 15A | LB | Chime, Luggage Compartment Door Lock Solenoid Release, Overhead Console, Anti-Theft Alarm control Module, Reading Lamps, Daytime Display Lamps for Radio, Clock, A/C Controls, Power Window Relay, Cellular Phone |

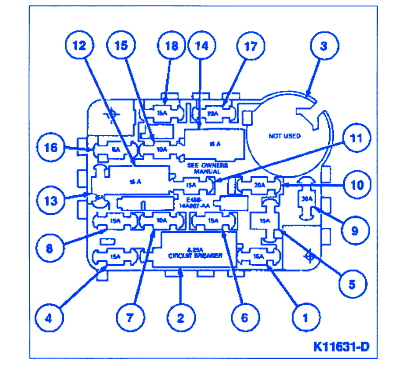

Lincoln Continantal 1995 Hazzard Fuse Panel/Board – Fuse Symbol Map
