Lifan X60 Passenger compartment Fuse Box / Block Circuit Breaker Diagram
No. Circuits protected A FS42 CD/DVD 15 FS43 Instrument Cluster 10 FS20 IMMO 10 FS27 BCM 5 FS29 Sunroof 20 FS46 Rearview Mirror Defroster 10 FS47 Rear Defroster 25 FS17 Control Lock 20 FS14 Reverse Lamp 10 FS16 Multi-function Discreen 10 FS37 Seat Heating 15 FS24 A/C 15 FS39 SRS 15 FS34 Front Wiper 25 FS21 IMMO 5 FS33 Cigarette Lighter 15 FS36 Rearview Mirror 7.5 FS41 CD/DVD 5 FS15 Dome Lamp 10 FS35 Rear Wiper 20 FS13 Turn Lamp 15 FS30 Brake Lamp 10 FS32 Spare Power 15 FS26 Power Windows 30 SB11 Blower 30 SB07 AM1 40 SB08 AM2 40
Symbol Fuse Map К14 Rear Fog Relay К16 Defroster Relay К10 Blower Relay

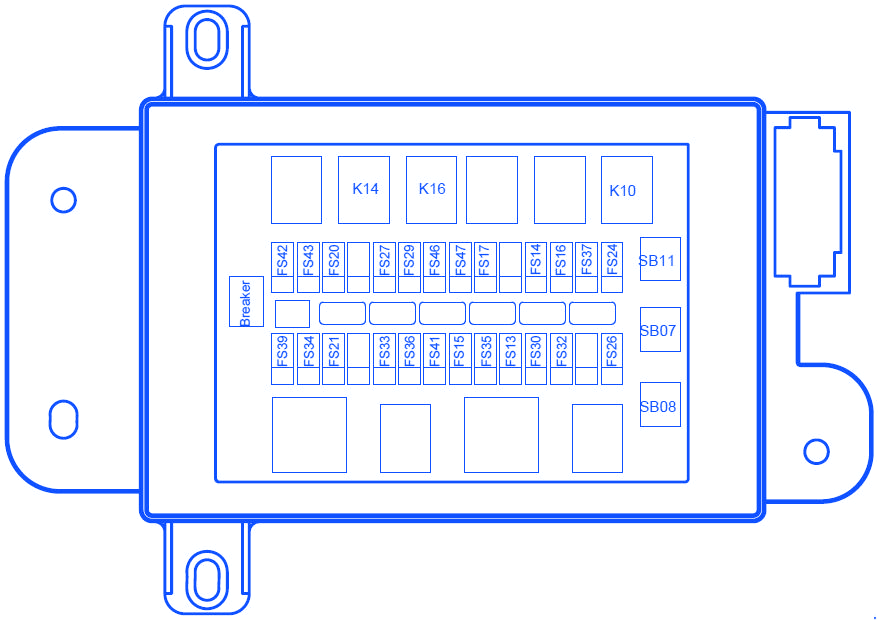

Lifan X60 Passenger compartment Fuse Panel / Board – Fuse Symbol Map
