Lifan 620 Engine Compartment Fuse Box / Block Circuit Breaker Diagram
Number A Description 3 20 — 4 15 — 5 20 — 6 25 — 13 40 Blower 14 60 Accessory power supply 15 60 Power supply for driver’s compartment 16 — — 17 30 — 18 7,5 — 19 — Picker 20 — — 21 — — 22 — — 23 — — 24 — — 25 30 ABS controller 26 30 ABS controller 27 25 Main relay 28 10 Compressor 29 10 Electronic injection ECU 30 25 High speed fan 31 25 Low speed fan 32 5 Fan speed regulation/high speed/low speed/compressor 33 15 Low beam 34 15 Overtaking/high beam 35 15 Front fog light
symbol Relay Map 1 Front fog light 2 Blower 7 High speed fan 8 Low speed fan 9 Speed regulation 10 Overtaking light 11 High beam 12 Low beam 36 Main Relay 37 Compressor 38 Main relay

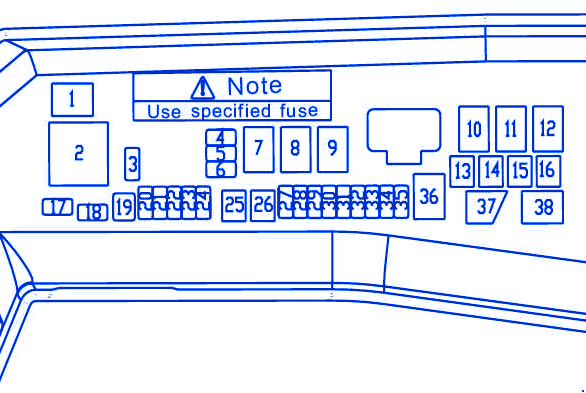

Lifan 620 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
