Lexus SC400 1999 Central Junction Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP | AMPS |
|---|---|---|
| 1 | IGN | 7.5A |
| 2 | ST | 7.5A |
| 3 | WIPER | 20A |
| 4 | HTR | 10A |
| 5 | ENGINE | 7.5A |
| 6 | RADIO NO.2 | 7.5A |
| 7 | CIG | 15A |
| 8 | STOP | 15A |
| 9 | TURN | 20A |
| 10 | MIR HTR | 10A |
| 11 | PANEL | 7.5A |
| 12 | - | - |
| 13 | - | - |
| 14 | ECV-B | 15A |
| 15 | GAUGE | 10A |
| 16 | ECU-IG | 15A |
| 17 | TAIL | 15A |
| 18 | DOOR | 30A |
| 19 | IG SW | 40A |
| 20 | PWR | 30A |

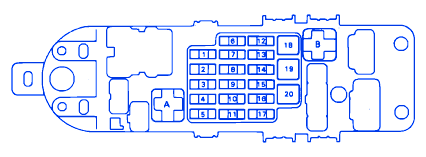

Lexus SC400 1999 Central Junction Fuse Panel/Board – Fuse Symbol Map
