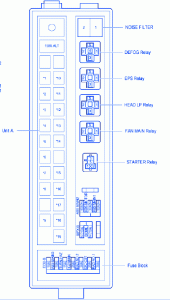

Lexus RX350 GS 430 2012 Engine Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Rating |
|---|---|---|
| 1 | EPS | 80A |
| 2 | P/I-B | 60A |
| 3 | LH J/B-B | 30A |
| 4 | STARTER | 30A |
| 5 | MAIN | 30A |
| 6 | VGRS | 40A |
| 7 | RH J/B-B | 30A |
| 8 | ABS 1 | 50A |
| 9 | E/G-B | 60A |
| 10 | LH J/B-AM | 80A |
| 11 | E/G-AM | 60A |
| 12 | GLW PLG2 | 50A |
| 13 | HEATER | 50A |
| 14 | FAN1 | 40A |
| 15 | DEFOG | 50A |
| 16 | ABS2 | 30A |
| 17 | RH J/B-AM | 80A |
| 18 | GLW PLG1 | 50A |
| 19 | RR J/B | 80A |
Lexus RX350 GS 430 2012 Engine Fuse Box/Block Circuit Breaker Diagram
