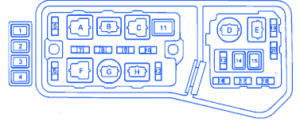

Lexus E330 2004 Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY SYMBOL | FUSE/RELAY MAP | AMPS |
|---|---|---|
| Fuses and Fusible Link | ||
| 1 | ABS (FL) | 50A |
| 2 | AM1 (FL) | 40A |
| 3 | ALT(FL) | 120A |
| 4 | AM2 (FL) | 30A |
| 5 | RADIO NO.1 | 20A |
| 6 | HAZ-HORN | 15A |
| 7 | DOME | 10A |
| 8 | TEL | 15A |
| 9 | EFI | 20A |
| 10 | SEAT HTR | 20A |
| 11 | RAD FAN (FL) | 30A |
| 12 | AIR SUS | 20A |
| 13 | - | - |
| 14 | AIR SUS (FL) | 40A |
| 15 | HTR (FL) | 60A |
| 16 | DRL | 10A |
| 17 | HEAD LH (USA) | 15A |
| HEAD LH- LWR (CANADA) | 15A | |
| 18 | HEAD RH (USA) | 15A |
| HEAD RH-LWR (CANADA) | 15A | |
| 19 | HEAD RH-UPR (CANADA) | 15A |
| 20 | HEAD LH-UPR (CANADA) | 15A |
| RELAYS | ||
| A | Headlight Control Relay | |
| B | Starter Relay | |
| C | Engine Main Relay | |
| D | Magnetic Clutch Relay | |
| E | Headlight Dimmer Relay (CANADA) | |
| F | Heater Main Relay | |
| G | Horn Relay | |
| H | EFI Main Relay | |

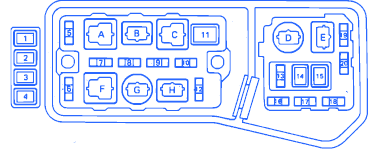

Lexus E330 2004 Fuse Panel/Board – Fuse Symbol Map
