Land Rover LR3 2005 Front Fuse Box/Block Circuit Breaker Diagram
| Link | Rating,Amperes | Function |
|---|---|---|
| FL1 | 40A | Lighting Switch, Fuse 2 & Fuse12 Passenger Fusebox, Front Fog Lamp Relay |
| FL2 | 60A | ABS Modulator |
| FL3 | 30A | Window Lift Relay, Fuse6 Passenger Fusebox, Fuse 23 Satellite Fusebox |
| FL4 | 40A | Ignition Switch |
| FL5 | 40A | Ignition Switch |
| FL6 | 60A | Fuse link 3,4 & 5, Fuse5,6 & 7 Under Bonnet Fusebox |

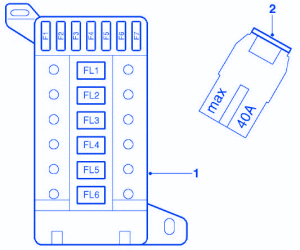

Land Rover LR3 2005 Front Fuse Panel/Board – Fuse Symbol Map
