KIA Sportage 2005 Tail Light Fuse Box/Block Circuit Breaker Diagram
| DESCRIPTION | FUSE RATING | PROTECTED COMPONENT |
|---|---|---|
| P/WINDOW | 30A | Power Windows |
| HEATER | 30A | Blower Fan |
| MEMORY | 15A | - |
| TAIL | 10A | Taillights, Parking Lights, Radio Illumination |
| HAZARD | 15A | Hazard Warning Lights, Turn Signals |
| D/LOCK | 30A | Auto Door Lock |
| STOP | 15A | Brake Lights |
| HORN | 10A | Horn |
| P/OUTLET | 20A | Electrical Power Outlet |
| ROOM | 10A | Interior Lights |
| DEF. | 20A | Rear Defroster |
| ST.SIGN | 10A | Side Turn Signal Lights |
| F/PUMP | 10A | Fuel Pump |
| RR.WIPER | 10A | Air Conditioner, Rear Wiper |
| WIPER | 15A | Front Wiper |
| ECU | 10A | Engine Control Unit |
| CIGAR | 15A | Cigarette Lighter, Power Mirrors |
| RADIO | 10A | Radio, Clock |
| ENG | 15A | - |
| A/BAG | 10A | Supplemental Restraint System |
| METER | 10A | Instrument Panel, Back-Up Lights |
| TURN | 10A | Lights Assembly |
| O2 SEN1 | 10A | Oxygen Sensor |
| O2 SEN2 | 10A | Oxygen Sensor |

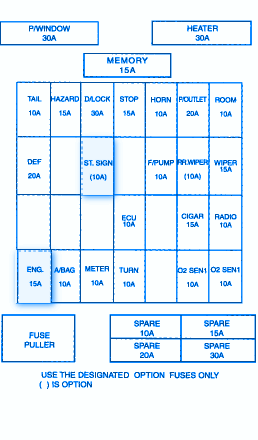

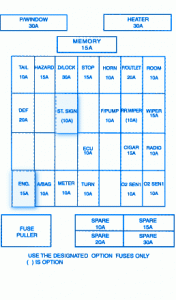

KIA Sportage 2005 Tail Light Fuse Panel/Board – Fuse Symbol Map
