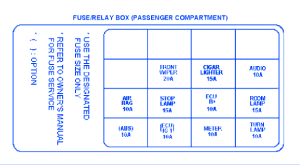

Kia Spectra 1999 Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY MAP | AMPS |
|---|---|
| FRONT WIPER | 20A |
| CIGAR LIGHTER | 15A |
| AUDIO | 10A |
| AIR BAG | 10A |
| STOP LAMP | 15A |
| ECU B+ | 10A |
| ROOM LAMP | 15A |
| ABS | 10A |
| ECU IG 1 | 10A |
| METER | 10A |
| TURN LAMP | 10A |
Kia Spectra 1999 Fuse Panel/Board – Fuse Symbol Map
