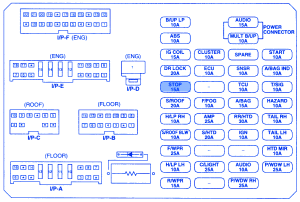

Kia Rio5 2007 Fuse Box/Block Circuit Breaker Diagram
| AMPS | FUSE MAP |
|---|---|
| 10A | B/UP LP |
| 10A | ABS |
| 15A | IG COIL |
| 20A | DR LOCK |
| 15A | STOP |
| 20A | S/ROOF |
| 10A | H/LP RH |
| 10A | S/ROOF BLW |
| 25A | F/WPR |
| 10A | H/LP LH |
| 15A | R/WPR |
| 10A | CLUSTER |
| 10A | ECU |
| 10A | F/FOG |
| 25A | AMP |
| 20A | S/HTD |
| 25A | C/LIGHT |
| 15A | AUDIO |
| 10A | MULT B/UP |
| 10A | SNSR |
| 10A | TCU |
| 15A | A/BAG |
| 30A | RR/HTD |
| 10A | IGN |
| 10A | AUDIO |
| 25A | P/WDW RH |
| 10A | START |
| 10A | A/BAG IND |
| 10A | T/SIG |
| 10A | HAZARD |
| 10A | TAIL RH |
| 10A | TAIL LH |
| 10A | HTD MIR |
| 25A | P/WDW LH |
Kia Rio5 2007 Fuse Panel/Board – Fuse Symbol Map
