KIA Pride 2010 Main Fuse Box/Block Circuit Breaker Diagram
| NO. | AMPS | FUSE MAP |
|---|---|---|
| -1 | 10A | B/UP LP |
| -2 | 10A | ABS |
| -3 | 15A | IG COIL |
| -4 | 20A | DR LOCK |
| -5 | 15A | STOP |
| -6 | 20A | S/ROOF |
| -7 | 10A | H/LP RH |
| -8 | 10A | S/ROOF BLW |
| -9 | 25A | F/WPR |
| -10 | 10A | H/LP LH |
| -11 | 15A | R/WPR |
| -12 | 10A | CLUSTER |
| -13 | 10A | ECU |
| -14 | 10A | F/FOG |
| -15 | 25A | AMP |
| -16 | 20A | S/HTD |
| -17 | 25A | C/LIGHT |
| -18 | 15A | AUDIO |
| -19 | 10A | MULT B/UP |
| -20 | 10A | SNSR |
| -21 | 10A | TCU |
| -22 | 15A | A/BAG |
| -23 | 30A | RR/HTD |
| -24 | 10A | IGN |
| -25 | 10A | AUDIO |
| -26 | 25A | P/WDW RH |
| -27 | 10A | START |
| -28 | 10A | A/BAG IND |
| -29 | 10A | T/SIG |
| -30 | 10A | HAZARD |
| -31 | 10A | TAIL RH |
| -32 | 10A | TAIL LH |
| -33 | 10A | HTD MIR |
| -34 | 25A | P/WDW LH |

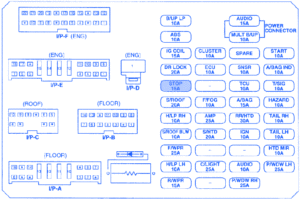

KIA Pride 2010 Main Fuse Panel/Board – Fuse Symbol Map
