KIA Mentor S2 2000 Automatic Fuse Box/Block Circuit Breaker Diagram
| FUSE | AMPS | COLOR | PROTECTED CIRCUIT |
|---|---|---|---|
| TAIL | 10A | Red | Daytime Running Light |
| FOG | 10A | Red | Fog Light |
| AUDIO | 15A | Blue | Audio, Cigar Lighter Remote Control Door Mirror, Power Antenna |
| S/ROOF | 15A | Blue | Sun Roof |
| DOOR LOCK | 30A | Green | Auto Door Lock, Door Lock |
| ROOM | 15A | Blue | Interior and Spot Lamp, Clock, Trunk Compartment Lamp |
| STOP | 15A | Blue | Stop Light, Back-Up Light, Horn |
| HAZARD | 10A | Red | Hazard Warning |
| ABS | 30A | Green | Anti-Lock Brake System |
| ENG. | 10A | Red | Engine |
| METER | 15A | Blue | Instrument Panel (Gauges and Warning Lamps), Turn Signal |
| Rr. DEF | 20A | Yellow | Rear Window Defroster |
| AIR BAG | 10A | Red | Air Bag System |
| F.WIPER | 20A | Yellow | Windshield Wiper and Washer |
| HEATER | 20A | Yellow | Blower Motor |
| POWER WINDOW | 30A | Green | Power Window |
| Rr.WIPER | 10A | Red | Rear Windshield Wiper and Washer |

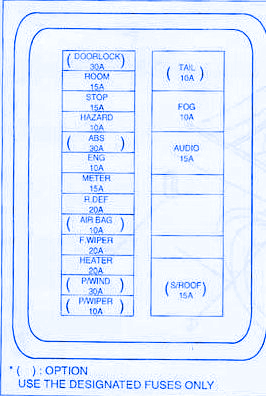

KIA Mentor S2 2000 Automatic Fuse Panel/Board – Fuse Symbol Map
