KIA GSX 2008 Front Fuse Box/Block Circuit Breaker Diagram
| Description | Fuse Rating | Protected Component Engine Compartment Fuses |
|---|---|---|
| FUEL INJ | 30A | Fuel injection System |
| ADD | 30A | A/C Condenser Fan |
| MAIN | 80A | For Protection of all Circuits |
| BTN | 60A | Brake Lights, License Plate Lights, Dome Light, Hazard Lights |
| IGN | 30A | Ignition |
| P/WIN | 40A | Power Windows |
| MAIN | 15A | Fuel Pump, Injector Main Relay, Fuel Pump Relay |
| ABS | 30A | Anti-Lock Brake System |
| HEAD | 20A | Headlights |

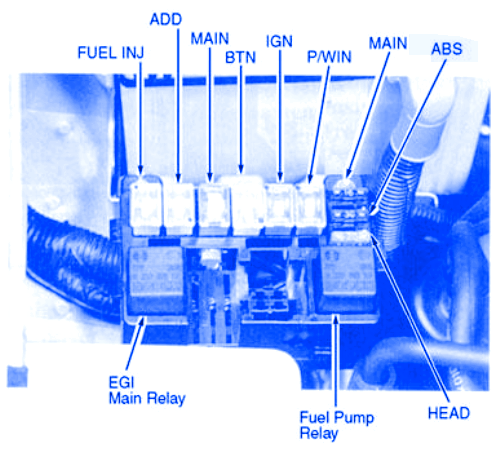

KIA GSX 2008 Front Fuse Panel/Board – Fuse Symbol Map
