KIA Forte K3 2011 Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | AMPS |
|---|---|
| P/SEAT DRV | 30A |
| SPARE | 25A |
| P/WDW RH | 25A |
| TRUNK | 10A |
| P/WDW LH | 25A |
| DR LOCK | 20A |
| SPARE | 20A |
| POWER OUTLET | 20A |
| S/HEATER RR | 20A |
| MODULE | 10A |
| SPARE | 7.5A |
| SPARE | 7.5A |
| FUSE SWITCH | - |
| MODULE | 10A |
| A/CON | 7.5A |
| MODULE | 7.5A |
| HTD MIRR | 10A |
| INTERIOR LAMP | 7.5A |
| MODULE | 7.5A |
| PDM | 7.5A |
| SUNROOF | 20A |
| MODULE | 10A |
| HTD STRG | 15A |
| IG1 | 20A |
| WIPER FRT | 25A |
| MULTI MEDIA | 7.5A |
| MEMORY | 7.5A |
| MODULE | 10A |
| PDM | 7.5A |
| MDPS | 7.5A |
| MODULE | 7.5A |
| START | 7.5A |
| MUTI MEDIA | 15A |
| BRAKE SWITCH | 10A |
| PDM | 20A |
| POWER OUTLET | 20A |
| A/BAG IND | 7.5A |
| MODULE | 10A |
| A/BAG | 15A |

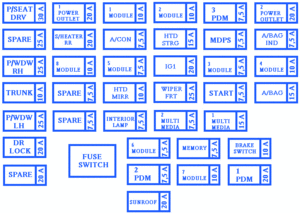

KIA Forte K3 2011 Fuse Panel/Board – Fuse Symbol Map
