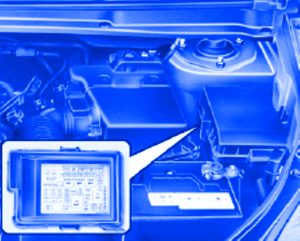

Kia Forte 2007 Fuel Pump Fuse Box/Block Circuit Breaker Diagram
| Description | Fuse Rating | Protected Component |
|---|---|---|
| I/P B+2 | 40A | I/P Junction Box |
| HORN RELAY | - | Horn Relay |
| H/LP LOW RELAY | - | Head Lamp (Low) Relay |
| H/LP HIGH RELAY | - | Head Lamp (High) Relay |
| ABS2 | 40A | ABS/ESC Control Module |
| DRL | 15A | DRL Control Module |
| HORN | 15A | Horn Relay, Burglar Horn Relay |
| H/LP LOW | 15A | Headlamp Relay (Low) |
| F/PUMP | 20A | Fuel Pump Relay |
| H/LP HI | 15A | Head lamp Relay (High) |
| ECU | 10A | TCM, Generator, ECM |
| ALTENATOR | 125A | (2.4L) Generator |
| 150A | (2.7L) Generator | |
| RAD FAN HI RELAY | - | Radiator Fan (High) Relay |
| RAD FAN LOW RELAY | - | Radiator Fan (Low) Relay |
| F/PUMP RELAY | - | Fuel Pump Relay |
| ABS1 | 40A | ABS/ESC Control Module |
| SPARE | 15A | Spare Fuse |
| MAIN | 30A | Engine Control Relay |
| SPARE | 15A | Spare Fuse |
| SPARE | 20A | Spare Fuse |
| P/AMP | 25A | Amplifier |
| SPARE | 15A | Spare Fuse |
| S/ROOF | 20A | Sunroof Control Module |
| SPARE | 20A | Spare Fuse |
| RAD FAN | 40A | Radiator Fan Relay |
| PCU | 10A | Pulse Generator, ECM, Radiator Fan Relay, Stop Lamp Switch |
| ABS | 10A | ABS/ESC Control Module, Multi purpose Check Connector |
| S/WARMER | 20A | Seat Warmer Relay |
| ATM | 20A | ATM Control Relay |
| TAIL | 20A | Tail Lamp Relay |
| SPARE | 20A | Spare Fuse |
| BACK UP | 10A | Vehicle Speed Sensor, Back up Lamp Switch, Transaxle Range Switch |
| WIPER RELAY | - | Wiper Relay |
| MAIN RELAY | - | Main Relay |
| RR HTD | 40A | Rear Defogger Relay |
| IGN 1 | 40A | Ignition Switch (ACC, IG1) |
| I/P B+1 | 30A | I/P Junction Box |
| ACC SOCKET | 20A | Rear Power Outlet |
| A/CON | 10A | A/C Relay |
| START RELAY | - | Start Relay |
| ECU 1 | 20A | ECM |
| IGN COIL | 20A | Ignition Coil |
| SNSR 3 | 15A | A/C Relay, Injector, Lambda Sensor, Radiator Fan Relay, Stop Switch (Brake Test Line) |
| BLOWER | 40A | Blower Relay |
| ATM CONT RELAY | - | ATM Control Relay |
| IGN 2 | 30A | Ignition Switch (IG2, START), Start Relay |
| A/CON RELAY | - | A/C Relay |
| SNSR 2 | 15A | Fuel Fump Relay, Oxygen Sensor |
| SNSR 1 | 15A | Immobilizer Control module, Camshaft Position Sensor, Mass Air Flow Sensor, Oil Control Valve, Canister Purge Solenoid Valve |
Kia Forte 2007 Fuel Pump Fuse Panel/Board – Fuse Symbol Map
