Kia Borrego 2009 Dash Fuse Box/Block Circuit Breaker Diagram
| DESCRIPTION | FUSE RATING | PROTECTED COMPONENT |
|---|---|---|
| P/WDW LH | 25A | Power Window Main Switch, Rear Power Window Switch LH |
| P/WDW RH | 25A | Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH |
| F/MIRROR | 10A | Data Link Connector |
| HAZARD LP | 15A | Hazard Relay, Hazard Switch |
| TAIL LH | 10A | Rear Combination Lamp LH, Head Lamp LH, License Lamp |
| TAIL RH | 10A | Rear Combination Lamp RH, Head Lamp RH, Rheostat Detent, AUX & USB Jack, Hazard Switch, ESC Switch, Instrument Cluster (ILL), Instrument Cluster (IND), Mood Lamp Switch, Power Window Main Switch, Audio Driver/Passenger Seat Warmer Switch, Shift Lever Switch, A/C Control Module, Multifunction Switch (Remocon) |
| IGN 2 | 10A | BCM, Electro Chromic Mirror, Sunroof Control Module |
| WIPER (RR) | 15A | Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch (wiper) |
| S/HTR | 20A | Driver/Passenger Seat Warmer Switch |
| WIPER (FR) | 25A | E/R Fuse & Relay Box (Front Wiper Relay), Front Wiper Motor, Multi Function Switch (Wiper) |
| AMP | 25A | AMP |
| S/ROOF | 20A | Sunroof Control Module |
| (FOG LP(FR)) | 15A | Front Fog Lamp Relay |
| T/GATE OPEN | 15A | Tail Gate Relay, DRL Relay |
| (FOG LP (RR)) | 10A | Rear Fog Lamp Relay |
| A/CON | 10A | A/C Control Module, E/R Fuse & Relay Box (Head Lamp Relay (High), Blower Relay |
| H/LP | 10A | E/R Fuse & Relay Box (Head Lamp Relay (Low)) |
| ACC | 10A | Audio, Mood Lamp Switch, Power Outside Mirror Switch |
| ACC SOCKET | 15A | Cigarette Lighter, Front power Outlet |
| MIRR, HTD | 10A | ECM/PCM (G4FC), Driver/Passenger Power Outside Mirror motor, A/C Control Module |
| DR LOCK | 20A | Door Lock Relay, Door Unlock Relay, 2 Turn Unlock Relay |

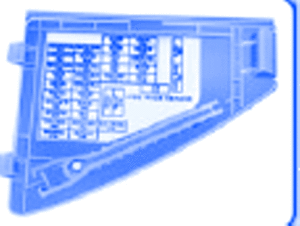

Kia Borrego 2009 Dash Fuse Panel/Board – Fuse Symbol Map
