Kia Amanti 2005 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION | AMPS |
|---|---|---|
| 1 | FUEL PUMP | 20A |
| 2 | H Lamp (LO-LH) | 15A |
| 3 | ABS | 10A |
| 4 | INJECTOR | 10A |
| 5 | A/CON COMP | 10A |
| 6 | ATM RELAY | 20A |
| 7 | ECU RELAY | 20A |
| 8 | IGN COIL | 20A |
| 9 | O2 SENSOR | 15A |
| 10 | ENG SENSOR | 15A |
| 11 | HORN | 15A |
| 12 | TAIL LAMP | 20A |
| 13 | H/LAMP WASHER | 20A |
| 14 | ETS | 20A |
| 15 | FOG LAMP (FR) | 15A |
| 16 | H/LAMP (HI) | 15A |
| 17 | SPARE | 30A |
| 18 | SPARE | 20A |
| 19 | SPARE | 15A |
| 20 | SPARE | 10A |
| 21 | BLOWER MOTOR | 30A |
| 22 | S/WARMER | 30A |
| 23 | AMPLIFIER | 20A |
| 24 | DRL | 15A |
| 25 | H/LAMP (LO-RH) | 15A |
| 26 | P/fUSE-1 | 30A |
| 27 | ECU | 10A |
| 28 | ECS | 15A |

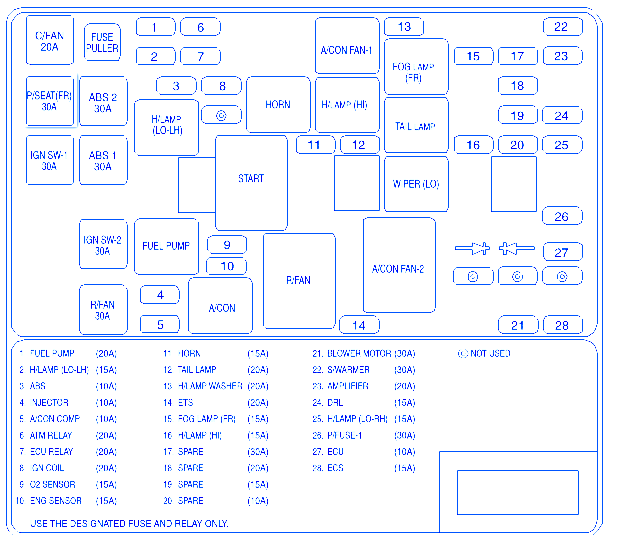

Kia Amanti 2005 Fuse Panel/Board – Fuse Symbol Map
