Jeep Hardtop 2000 Distribution Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSED CIRCUIT | AMPS |
|---|---|---|
| 1 | A14 16RD/WT | 30A |
| 2 | A11 10RD | 50A |
| 3 | A6 12RD/BK | 50A |
| 4 | A1 12RD | 40A |
| 5 | L9 18BK/WT | 20A |
| 6 | A11 10RD | 50A |
| 7 | A3 12RD/OR | 30A |
| 8 | A4 18BK/RD | 20A |
| 9 | A10 12RD/BR | 40A |
| 10 | A20 14RD/DB | 30A |
| 11 | F31 18VT | 10A |
| 12 | N1 18PK | 10A |
| 13 | F15 18YL/D6 | 2A |

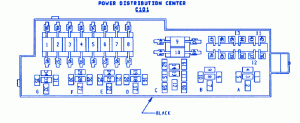

Jeep Hardtop 2000 Distribution Fuse Panel/Board – Fuse Symbol Map
