Jeep Grand Cherokee 2004 Power Distribution Fuse Box/Block Circuit Breaker Diagram
| Symbol | Descripyions | Amp |
|---|---|---|
| 1 | Blower Motor | 40A |
| 2 | Junction Bus Power | 40A |
| 3 | Junction Bus Pwr Lamps | 50A |
| 4 | ABS Pump | 40A |
| 5 | TCM Power | 30A |
| 6 | ASD | 30A |
| 7 | Junction Block Pwr | 50A |
| 8 | Ignition Starter | 40A |
| 9 | Not Used | - |
| 10 | Radiator Fan Relay | 40A |
| 11 | Emty, For IOD Fuse Storage | - |
| 12 | Power Windows | 50A |
| 13 | OSS Pump | 60A |
| 14 | Ignition Switch | 40A |
| 15 | JB Power | 50A |
| 16 | O2 Sensor | 15A |
| 17 | Cluster/Data Link | 10A |
| 18 | Horn | 15A |
| 19 | PCM | 10A |
| 20 | OSS Module | 20A |
| 21 | AC Clutch | 15A |
| 22 | ECM | 10A |
| 23 | Cabin Heater Relay | 15A |
| 24 | Fuel Pump | 20A |
| 25 | ABS Main Relay | 20A |
| 26 | Injectors | 15A |
| 27 | Rear Pwr Outlet | 20A |
| 28 | TCM | 15A |
| Relays | ||
| 29 | Fuel Pump | |
| 30 | Starter Motor | |
| 31 | TCM | |
| 32 | Wiper On/Off | |
| 33 | Wiper Hi-Low | |
| 34 | Rear O2 Sensor/Viscous Cabin Heater | |
| 35 | Backup Lamp | |
| 36 | AC Clutch | |
| 37 | Horn | |
| 38 | Auto Shut Down | |
| 39 | OSS Module/Glow Plug | |
| 40 | OSS Pump/Glow Plug | |

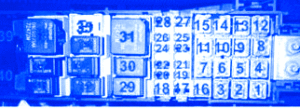

Jeep Grand Cherokee 2004 Power Distribution Fuse Panel/Board – Fuse Symbol Map
