Jeep Cherokee 1996 Fuse Box/Block Circuit Breaker Diagram
| Cavity | Amps | Description |
|---|---|---|
| 1 | 25A | Rear Wiper, Rear Washer |
| 2 | 15A | Radio, Radio/Clock,Cigar Lighter, Illumination, Dome Lamp |
| 3 | - | - |
| 4 | 15A | Flash to Pass |
| 5 | 25A | Blower Motor |
| 6 | 30A | Power Windows |
| 7 | 2A | Antilock Brakes |
| 8 | 20A | Turn Signal Flasher |
| 9 | 10A | Illuminated Entry, Radio/Clock & Memory, Courtesy Lights, Glove Box, Dome Lamp |
| 10 | - | - |
| 11 | 25A | Headlamp, Delay Module, Horn |
| 12 | - | - |
| 13 | - | - |
| 14 | 10A | Power Antenne |
| 15 | 15A | I.P Lamps, Clock, Radio/Clock & Memory, Headlamp Switch, Park Lamp |
| 16 | 30A | Power Seats, Trailer Tow |
| 17 | 7.5A | Instrument Cluster Gauges, Headlamp Delay Module, Chime Module, Overhead |
| 18 | 25A | Heated Rear Window |
| 19 | 5A | Instrument Panel Lamps, Radio Illumination |
| 20 | 5.5A | Windshield Wiper/Windshield Washer |

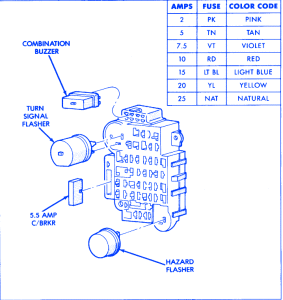

Jeep Cherokee 1996 Fuse Panel/Board – Fuse Symbol Map
