Symbol | Description |
---|---|
R15 | Main Beam/Front Fog Relay |
R16 | Not Used |
R17 | Reverse Lamps Relay |
R18 | Ignition Relay |
R19 | Heated Rear Window Relay |
R20 | A/C Blower Relay |
R21 | Battery Saver Relay |

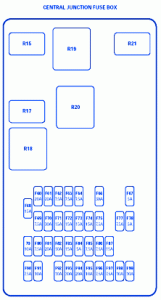

Jaguar XK8 2005 Central Junction Fuse Panel/Board – Fuse Symbol Map
