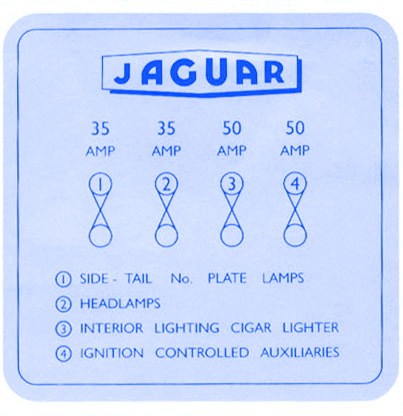

Jaguar XK 150 1991 Headlamp Fuse Box/Block Circuit Breaker Diagram

Jaguar XK 150 1991 Headlamp Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
1Side Tail No. Plate Lamps
2Headlamps
3Interior Lighting Cigar Lighter
4Ignition Controlled Auxiliaries

Jaguar XK 150 1991 Headlamp Fuse Panel/Board – Fuse Symbol Map
