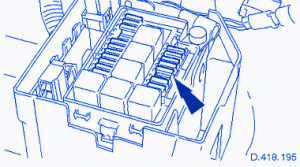

Jaguar XJR 2009 Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Rating(Amps) | Circuit |
|---|---|---|
| 1 | 10A | Security and Locking Control Module (Reversing Lamps, Rear Fog Lamps, Stop Lamps, Electrochromic Mirror) |
| 2 | 5A | Fuel Filter Flap |
| 3 | 10A | F16 Left-Hand Heelboard (Where Fitted) |
| 4 | 5A | Diagnostic Connector |
| 5 | 5A | Right-Hand and Left-Hand Seat Timer (Rear) |
| 6 | - | Not Used |
| 7 | 20A | Fuel Pump |
| 8 | 10A | High Mounted Stop Lamp, Caravan/Trailer Stop Lamps |
| 9 | 10A | Antenna Motor |
| 10 | 10A | Security and Locking Control Module (Trunk Release, Caravan/Trailer Direction Indicators, Fuel filter Flap Relay) |
| 11 | 10A | Accessory Sockets |
| 12 | 15A | In-Car Entertainment Power Amplifier |
| 13 | - | Not Used |
| 14 | - | Not Used |
| 15 | 20A | Fuel Pump(Super charger, Where Fitted) |
| 16 | 20A | Caravan/Trailer Connector |
| 17 | 25A | Heated Rear Screen |
| 18 | 20A | Rear Seat Movement |
| 19 | 5A | Right-Hand Side Lamps, Left-Hand and Right-Hand Number Plate Lights, Caravan/Trailer |
| 20 | 20A | Rear Seat Movement |
| 21 | 5A | Left-Hand Side Lamps, Left-Hand and Right-Hand Sidemaker Lights, Caravan/Trailer |
| 22 | 20A | Rear Seat Heaters |
Jaguar XJR 2009 Fuse Panel/Board – Fuse Symbol Map
