Jaguar Classic C-Type Mini 1955 Fuse Box/Block Circuit Breaker Diagram

Jaguar Classic C-Type Mini 1955 Fuse Box/Block Circuit Breaker Diagram

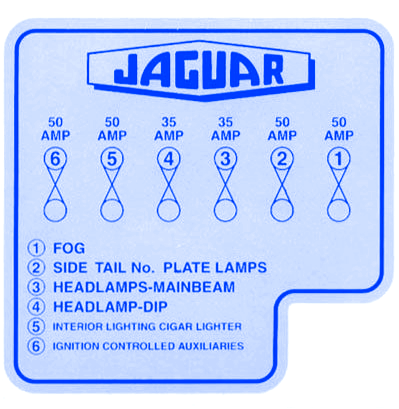

Fuse SymbolAmpsFuse Map
150AFog
250ASide Tail No.Plate Lamps
335AHeadlamps Main Beam
435AHeadlamp Dip
550AInterior Lighting Cigar Lighter
650AIgnition Controlled Auxiliaries

Jaguar Classic C-Type Mini 1955 Fuse Panel/Board – Fuse Symbol Map
