Isuzu Rodeo LS 1999 Blower Connector Electrical Circuit Wiring Diagram

Isuzu Rodeo LS 1999 Blower Connector Electrical Circuit Wiring Diagram



SymbolDescription
1Battery (-) Cable
2Battery (+) Cable
3H-2, H-3
4Battery Cable Harness
5H-7, H-8
6Transmission Harness (HEC)
7H-1
8H-12, H-19
9Body Harness
10Instrument Harness

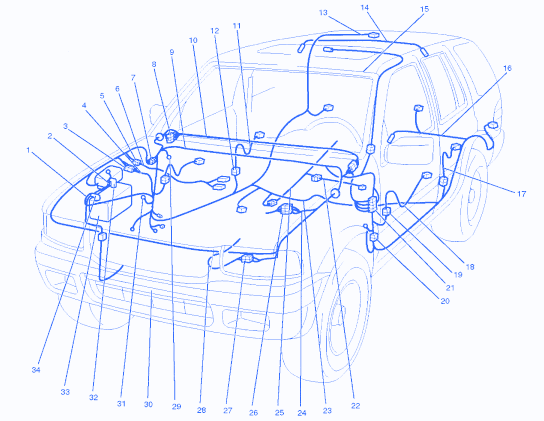

Isuzu Rodeo LS 1999 Blower Connector Electrical Circuit Symbol Map
