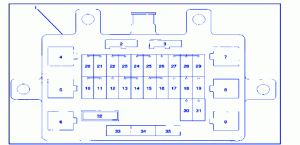

Isuzu Rodeo 3200 2002 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map | Amps | |||
|---|---|---|---|---|---|
| Relays | |||||
| 1 | Fuse/Relay Box | ||||
| 2 | Diode | ||||
| 3 | Diode | ||||
| 4 | Tail Relay | ||||
| 5 | Not Used | ||||
| 6 | ACC Socket Relay | ||||
| 7 | Power Window Relay | ||||
| 8 | Not Used | ||||
| 9 | Rear Defogger Relay | ||||
| Fuses | |||||
| 10 | Fuse ACC Socket | 20A | |||
| 11 | Audio (ACC) | 15A | |||
| 12 | Starter | 10A | |||
| 13 | Tail | 15A | |||
| 14 | Room Lamp | 10A | |||
| 15 | Stop Lamp | 15A | |||
| 16 | Door Lock | 20A | |||
| 17 | Mirror Defogger | 10A | |||
| 18 | Rear Defogger | 15A | |||
| 19 | Rear Defogger | 15A | |||
| 20 | Meter | 15A | |||
| 21 | ENG | 15A | |||
| 22 | IG Coil | 15A | |||
| 23 | Back-Up | 15A | |||
| 24 | ELEC IG | 15A | |||
| 25 | RR WIPER | 10A | |||
| 26 | FRT Wiper | 20A | |||
| 27 | Audio | 10A | |||
| 28 | Cigar Lighter | 15A | |||
| 29 | Anti-Theft | 10A | |||
| 30 | SRS | 10A | |||
| 31 | Not Used | - | |||
| 32 | Circuit Breaker Power Window | 30A | |||
| 33 | Spare Fuse | 20A | |||
| 34 | Spare Fuse | 15A | |||
| 35 | Spare Fuse | 10A | |||
Isuzu Rodeo 3200 2002 Fuse Panel/Board – Fuse Symbol Map
