Fuse Symbol | Amps | Fuse Map |
---|---|---|
1 | 30A | Starting System |
2 | 30A | Anti-Lock Brake System |
3 | 25A | Cooling Fan System |
4 | 100A | |
5 | 75A | |
6 | 45A | |
7 | - | Not Used |

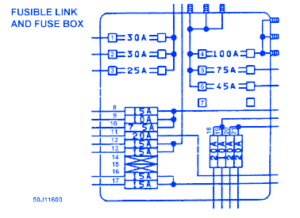

Infinity FX45 2003 Link Fuse Panel/Board – Fuse Symbol Map
Aug 01
Fuse Symbol | Amps | Fuse Map |
---|---|---|
1 | 30A | Starting System |
2 | 30A | Anti-Lock Brake System |
3 | 25A | Cooling Fan System |
4 | 100A | |
5 | 75A | |
6 | 45A | |
7 | - | Not Used |

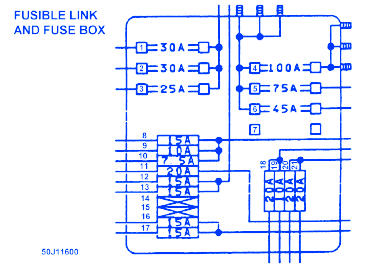

Infinity FX45 2003 Link Fuse Panel/Board – Fuse Symbol Map
