Infiniti G-20 1999 Main Relay Fuse Box/Block Circuit Breaker Diagram

Infiniti G-20 1999 Main Relay Fuse Box/Block Circuit Breaker Diagram

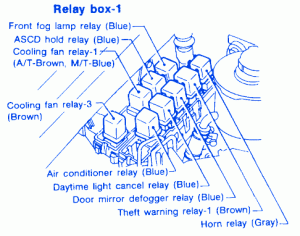

RELAY MAP
Cooling Fan Relay-3
Cooling Fan Relay-1 (A/T-Brown, M/T-Blue)
ASCD Hold Relay (Blue)
Front Fog Lamp Relay (Blue)
Air Conditioner (Blue)
Daytime Light Cancel Relay (Blue)
Door Mirror Defogger Relay (Blue)
Theft Warning Relay-1 (Brown)
Horn Relay (Gray)

Infiniti G-20 1999 Main Relay Fuse Panel/Board – Fuse Symbol Map
