Hyundai Santa Fe v6 2008 Fuse Box/Block Circuit Breaker Diagram
| Fuse | Rating | Protected Components |
|---|---|---|
| F1 | 20A | Cigarette Lighter & Power Outlet |
| F2 | 10A | Audio, Power Outside Mirror |
| F3 | 15A | Digital Clock, Rear Power Outlet |
| F4 | 10A | Cruise Control |
| F5 | 10A | HeadLamp Relay |
| F6 | 25A | Seat Warmer |
| F7 | 10A | Rear Wiper Motor Control |
| F8 | 10A | Rear Window Defogger, Power Outside Mirror |
| F9 | 10A | A/C Control, Sunroof Controller, Electrical Chrome Mirror |
| F10 | - | Not Used |
| F11 | 10A | Room Lamp, Door Warning Switch, Door Lamp, Manual A/C Control, Homelink Controller |
| F12 | 15A | Digital Clock, ETACM, Audio, Siren |
| F13 | 20A | AMP Speaker |
| F14 | 10A | Stop Lamp, Data Link Connector, Multipurpose Check Connector |
| F15 | 10A | Hazard Lamp |
| F16 | 25A | Power Seat, Rear Wiper Motor Control |
| F17 | 20A | Sunroof Controller |
| F18 | 30A | Defogger Relay |
| F19 | 10A | Instrument Cluster, Pre-axcrtation Resistor, ETACM, Auto Light Sensor, DRL Control Module, Generator |
| F20 | 15A | SRS Control Module |
| F21 | 10A | ECM (V6 2.7L) |
| F22 | 10A | Instrument Cluster (Airbag IND) |
| F23 | 10A | ABS Control Module, G-Sensor, Air Bleckcling Connector, 4WD Control Module |
| F24 | 10A | Turn Signal Lamp |
| F25 | 10A | Back-Up Lamps, TCM, Vehicle Speed Sensor, Ignition Sensor |
| F26 | 20A | Door Lock/Unlock Relay, Key Lock/Unlock Relay |
| F27 | 10A | Tail & Parking Lamp (LH), Turn Signal Lamp, License Lamp |
| F28 | 10A | Tail & Parking Lamp (RH), Fog Lamp Relay, Switch Illumination |
| F29 | 15A | BTS Contrl Module (V6 3.5L), Tail Safety Relay |
| F30 | 10A | Radiator Fan Relay, Condenser Fan Relay |
| F31 | 20A | Front Wiper Motor, Wiper Relay, Washer Motor |

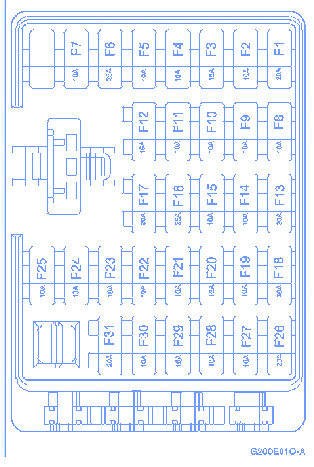

Hyundai Santa Fe v6 2008 Fuse Panel/Board – Fuse Symbol Map
