Honda Prelude Automatic 1991 Fuse Box/Block Circuit Breaker Diagram

Honda Prelude Automatic 1991 Fuse Box/Block Circuit Breaker Diagram

Fuse/Relay MapAmps
Left Light Motor15A
Right Light motor15A
Stop/Horn20A
Hazard20A
Left Headlight15A
Right Headlight15A
Condenser Fan15A
Clock10A
Cooling Fan20A
ECU10A
ACG (S)10A
Power Win Sun Roof40A
Rear Defrost30A
Interior Lights40A
IG-240A
IG-140A
Battery70A
Dimmer Relay
Lighting Relay
Condenser Fan Relay
Cooling Fan Relay

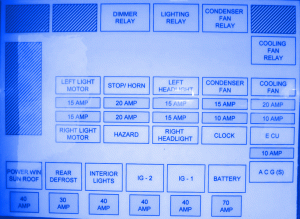

Honda Prelude Automatic 1991 Fuse Panel/Board – Fuse Symbol Map
