Honda Goldwing 2008 Speed Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Fuse Map |
|---|---|
| 1 | Not Used |
| 2 | MAIN Fuse A |
| 3 | ABS MTR FR Fuse |
| 4 | ABS MTR RR Fuse |
| 5 | TAIL Fuse |
| 6 | ACC TERM Fuse |
| 7 | FAN Fuse |
| 8 | ST KILL Fuse |
| 9 | HEAD RLY Fuse |
| 10 | RVS START Fuse |
| 11 | RVS Fuse A |
| 12 | RVS Fuse B |
| 13 | ABS MAIN Fuse |
| 14 | Not Used |
| 15 | Not Used |
| 16 | Not Used |
| 17 | FI IGN Fuse |
| 18 | STOP LIGHT Fuse |
| 19 | IGN CRUISE Fuse |
| 20 | SUSP LEVEL Fuse |
| 21 | AUDIO/ACC Fuse |
| 22 | BATTERY Fuse |
| 23 | RVS SHIFT Fuse |
| 24 | HEAD HI Fuse |
| 25 | Not Used |
| 26 | HEAD LO Fuse |
| 27 | HORN TURN Fuse |

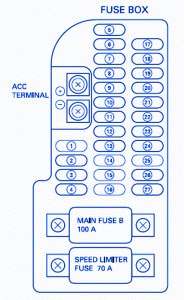

Honda Goldwing 2008 Speed Fuse Panel/Board – Fuse Symbol Map
