Honda Fit Primary 2007 Under-Hood Fuse Box/Block Circuit Breaker Diagram

Honda Fit Primary 2007 Under-Hood Fuse Box/Block Circuit Breaker Diagram



No.Amps.Circuit Protected
180ABattery
260AEPS
350AIgnition
430AABS
540ABlower Relay
640APower Window
730AHAC Option
810ABack Up
930ASmall Lights
1030ACooling Fan
1130ACondenser Fan, MG Clutch
1220ARight Headlight
1320ALeft Headlight
1410AHazard
1530AABS F/S
1615AHorn, Stop

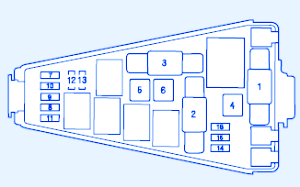

Honda Fit Primary 2007 Under-Hood Fuse Panel/Board – Fuse Symbol Map
