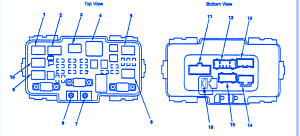

Honda CRV 2008 Central Fuse Box/Block Circuit Breaker Diagram

Honda CRV 2008 Central Fuse Box/Block Circuit Breaker Diagram



RefSocket
1Radiator Fan Relay
2A/C Compressor Clutch Relay
3Rear Window Defoger Relay
4Blower Motor Relay
5Headlight Relay 1
6Headlight Relay 2
7T101
8T1
9Condenser Fan Relay
10Horn Relay
11E
12D
13B
14A
15C
16ELD Unit
