Honda Accord Sedan 2008 Underhood Fuse Box/Block Circuit Breaker Diagram
| No. | Amps. | Circuit Protected |
|---|---|---|
| 1-1*1 | 100A | Battery |
| 1-1*2 | 120A | Battery |
| 1-2 | 40A | Passanger's Side Fuse Box |
| 2-1 | - | Not Used |
| 2-2 | 40A | ABS/VSA |
| 2-3 | 30A | ABS/VSA Motor |
| 2-4 | (40A) | Passanger's Side Fuse Box |
| 2-5 | - | Not Used |
| 2-6 | - | Not Used |
| 3-1*1 | 30A | Sub Fan Motor |
| 3-1*2 | 30A | Wiper Motor |
| 3-2 | 30A | Main fan Motor |
| 3-3 | 30A | Driver's Side Light Main |
| 3-4 | 30A | Driver's Side Light Main |
| 3-5 | (60A) | Driver's Side Fuse Box |
| 3-6 | 30A | Passenger's Side Light Main |
| 3-7 | (40A) | Driver's Side Fuse Box |
| 3-8 | 50A | IG Main |
| 4 | 40A | Rear Defroster |
| 5*1 | 20A | Sub Fan Motor |
| 5*2 | - | Not Used |
| 6 | - | Not Used |
| 7 | - | Not Used |
| 8 | 40A | Heater Motor |
| 9 | 15A | Hazard |
| 10 | 20A | Horn, Stop |
| 11 | - | Not Used |
| 12 | - | Not Used |
| 13 | 15A | IG Coil |
| 14 | 15A | FI Sub |
| 15 | 10A | Back Up |
| 16 | 7.5A | Interior Lights |
| 17 | 15A | FI Main |
| 18 | 15A | DBW |
| 19*1 | - | Not Used |
| 19*2 | 7.5A | Back Up, FI ECU |
| 20 | 7.5A | MG Clutch |
| 21 | 7.5A | Fan Relay |

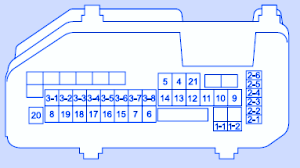

Honda Accord Sedan 2008 Underhood Fuse Panel/Board – Fuse Symbol Map
