Honda Accord Coupe 1989 Fuse Box/Block Circuit Breaker Diagram
| Number | Amps | Wire Color | Component or Circuit Protected |
|---|---|---|---|
| 1 | 10A | YEL | Combination Meter Back-up Light |
| 2 | 15A | BLK/YEL | A/T Control Unit, ELD unit, PGM-FI ECU |
| 3 | 10A | PNK | SRS Unit (Except Canada-LX, EX) |
| 4 | 7.5A | BLK/YEL | Cruise Control |
| 5 | 7.5A | YEL/GRN | Moonroof |
| 10A | YEL/GRN | Moonroof, Rear Wiper Motor (Wagon)(Except Canada-LX, EX) | |
| 6 | 30A | GRN/BLK | Wiper Motor, Intermittent Wiper Relay, Combination Switch |
| 7 | 7.5A | BLK/YEL | A/C Cluth Relay |
| 8 | 7.5A | YEL/BLK | ABS, Cooling Fan System, Heater Control Switch |
| 9 | 7.5A | BLU/RED | Starter Signal |
| 10 | 7.5A | YEL/RED | Daytime Running Lights Relay (Canada) |
| 11 | 10A | YEL/RED | Stereo Radio/Cassette Player, Cigarette Lighter Relay |

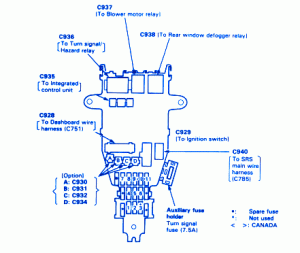

Honda Accord Coupe 1989 Fuse Panel/Board – Fuse Symbol Map
