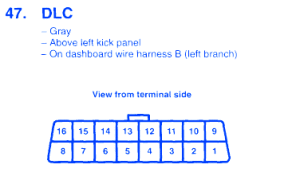

Honda Accord 3.0 2001 Electrical Circuit Wiring Diagram
| Symbol | Description |
|---|---|
| 1 | (9) |
| 2 | (10) |
| 3 | (11) |
| 4 | (12) BLK (G401)(Ground for PGM Tester) |
| 5 | (13) BRN/BLK (G101)(Signal Ground for Communication Network) |
| 6 | (14) |
| 7 | (15) GRY (DLC and MIL Circuits)(K Line for Off-Board Communication) |
| 8 | (16) |
| 9 | (1) BRN (Circuit F28) |
| 10 | (2) |
| 11 | (3) |
| 12 | (4) RED/WHT |
| 13 | (5) |
| 14 | (6) LT BLU (Circuit F29) |
| 15 | (7) |
| 16 | (8) WHT/GRN (Fuse 46)(Power for PGM Tester (B+, 4 amps Max) |
Honda Accord 3.0 2001 Electrical Circuit Symbol Map
